The Axis series from Terra provides that same all-climate made in Maine endurance as the Tr50 and Tr60 but with speakers designed to be mounted almost flush within walls or ceilings.Read More

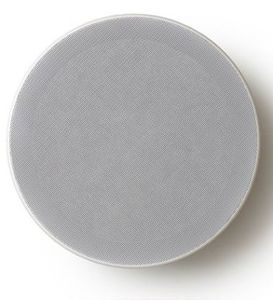

The TrAx60 (Round or Square Grill) is among the latest in Terra’s line of high performance installed loudspeakers. It incorporates our most advanced 6.5-inch ACAD fluid cooled woofer/midrange combined with a 1-inch co-axial, fluid cooled aluminum alloy tweeter. The tweeter is mounted in a tilt-able, aim-able socket to optimize performance even if the CA 6 must be located in a less than ideal sonic location.
The TrAx60-DT is a single-point-stereo version of the TrAx60 and ideal for those locations where sound quality is important, but space is at a premium. Both models include front mounted switches to adjust in-room frequency response to their surroundings. R = round bezel – S = square bezel.
All-climate
High-quality Sound
No Maintenance
Lifetime Guarantee
General Specs | |
| Frequency Response | 65Hz - 20kHz 3dB |
| Waterproof | Yes |
| RMS Power Handling (Watts) | 125 |
| Color | White |
| Impedance | 8 ohms |
| Maximum Power Handling (Watts) | 125 |
| Sensitivity | 88dB (1 Watt @ 1 Meter) |
| Speaker Type | Powered Stereo Speakers |
General | |
| Drivers | 6.5" ACAD Bass/Mid |
| Tweeter | Coaxial 1" Aluminum |
| Temperature Range | -20˚C - 105˚C |
| Grill | Micro-Perf Aluminum Round or Square |
| Power Handling | 125 Watts |
| Frequency Range | 65Hz - 20kHz 3dB |
| Impedance | 8 Ohms |
| Sensitivity | 88dB (1 Watt @ 1 Meter) |
| Nominal Coverage Angle | 90 degrees conical |
| Coverage Angle (1 Khz To 6 Khz) | 105 degrees |
| Rated Maximum SPL | Average: 109 dB Peak: 115 dB |
| Frame Dimensions | 9.25" Diameter [235mm] 4.5" Depth [115mm] |
| Cutout Dimensions | 7.75" Diameter [191mm] |
| Frame Size | Round Frame - 9 5/8" [244mm] / Square Frame 9 5/8" [244mm] x 9 5/8" [244mm] |
| Net Weight (Each) | 6.3 lbs. / 2.9 kg |
| Waterproof Rating | *IP67 Meets or exceeds MIL-STD-810G standards |
| Please Note | *CA Speakers must be sealed under the flange for the waterproof rating. |
