The CDi Series amplifiers are professional tools designed and built for installed sound applications. The series includes four models which are identical except for output power: CDi 1000, CDi 2000, CDi 4000, and CDi 6000. All are rugged and lightweight, and offer unmatched value in their class.

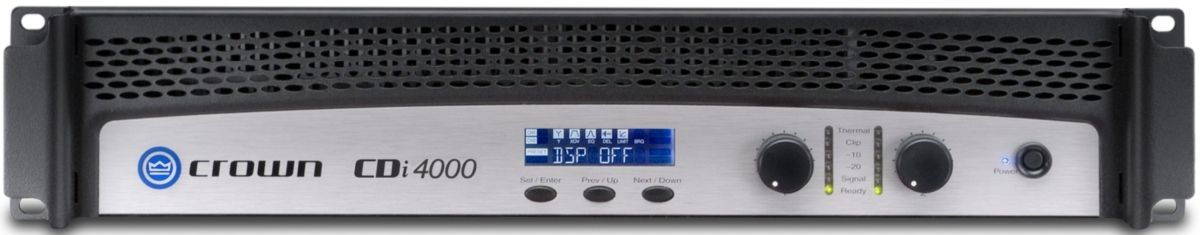

Crown® Audio CDi 4000 2 Channel Power Amplifier

Extremely versatile; rated for 2-, 4-, 8-ohm loads and 70V and 140V outputs.

Intuitive front-panel LCD screen for quick, easy configuration.

Onboard digital signal processing includes crossovers, EQ filters, delay, and output limiting.

General Specs
Depth (in.)	12.25
Height (in.)	3.5
Impedance	20k ohms balanced, 10k ohms unbalanced
Width (in.)	19
Channels	2
Frequency Response	+ 0 dB, -1 dB(at 1W, 20 Hz - 20 kHz)
Color Finish Name	Black
Product Weight (lbs.)	22
Collection	CDi
Color	Black
General
Channels	2
Sensitivity (for full rated power at 8 ohms)	1.4V
Rated Power Output (per channel @ 4 ohms)	1200W Stereo
Signal to Noise Ratio (below rated 1 kHz power at 8 ohms)	100 dB (A-weighted)
THD	< 0.5%
Damping Factor (20 Hz to 400 Hz)	> 500
Frequency Response (at 1W, 20 Hz - 20 kHz)	+ 0 dB, -1 dB
Crosstalk (below rated power) 20 Hz to 1 kHz	>70 dB
Input Impedance (nominal)	20k ohms balanced, 10k ohms unbalanced
Dimensions	3.5" x 19" x 12.25"
Weight	22.0 lbs
IEC Power Connector	15A
