Crestron® X Series 2 Channel Media Presentation Amplifier

Product Overview

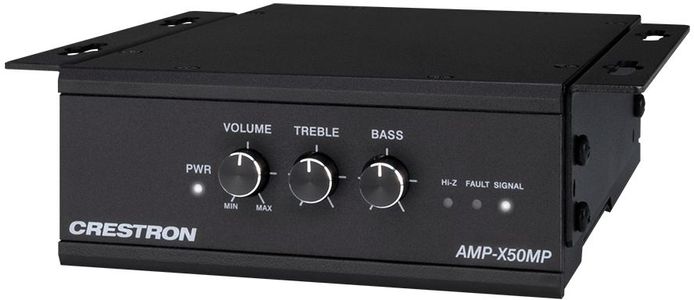

The Crestron® AMP-X50MP is a low-cost audio amplifier solution that is suitable for a variety of applications. It features a compact, surface‑mountable design that installs virtually anywhere without requiring an equipment rack.

LoZ (4/8 Ω) and Hi-Z (70 V or 100 V) Output

High-efficiency Class D circuitry delivers 25 W per channel to drive one pair of 4 or 8 Ohm speakers, making it ideal to support stereo speakers at the front of a room or mono speakers in the ceiling. The amplifier can also be used with Hi-Z (70/100 V) speakers, delivering 50 W.

Convection Cooling

The efficient design provides cool running operation to ensure long term reliability. The AMP-X50MP is high-density stackable with other Crestron X Series and Modular Amplifiers, allowing multiple units to be installed vertically in an equipment rack without needing extra ventilation space.

Easy Installation

Installation and setup of the AMP-X50MP is simple. Detachable connectors facilitate the termination of wiring. Balanced and unbalanced inputs can connect directly to the line output of a video projector or display, audio processor, mixer, or AV switcher. Independent controls for volume, bass, and treble allow a custom sound in any location.

Fully Protected

The AMP-X50MP features protection against overheating, shorted or overloaded speaker lines, excessive input signals, and other faults. In the case of a shorted speaker line, both outputs mute automatically until the fault condition is resolved.

Compact and versatile power amplifier

2 x 25 W per channel (1 x 50 W) into 4 or 8 Ohm speakers

1 x 50 W output for Hi-Z (70 V and 100 V) speakers

Balanced, unbalanced, and stereo 3.5 mm inputs with auto summing

Stereo or mono-summed operation

Remote power control

Energy saving design reduces power consumption when idle

Highly sensitive audio-sensing circuitry with high-speed wake time

Convection cooled for noiseless operation

Quarter-Rack width for rack mounting with optional kit

Volume, bass, and treble adjustments

60 W DC power supply with locking barrel connector and DC cable included

Captive speaker and power connectors for secure and robust connectivity

Electronic short-circuit and overload protection

Factory installed surface mount flange brackets are removable and reversible
